LED LCD display 350W 500W bottle battery 36V 12.5AH 48V 10AH Electric bike ebike conversion kit XF15F 15R motor MXUS brand

2 reviews
100% of buyers enjoyed this product! 27 orders

562.90$678.71$

36V13AH LCD336V13AH LCD536V13AH LCD8H36V17AH LCD336V17AH LCD536V17AH LCD8H48V10.4AH LCD348V10.4AH LCD548V10.4AH LCD8H48V13.6AH LCD348V13.6AH LCD548V13.6AH LCD8H
Clear
SKU:
32825224812
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide


This kit comes with everything you need to convert your bicycle to an E-bike including battery.

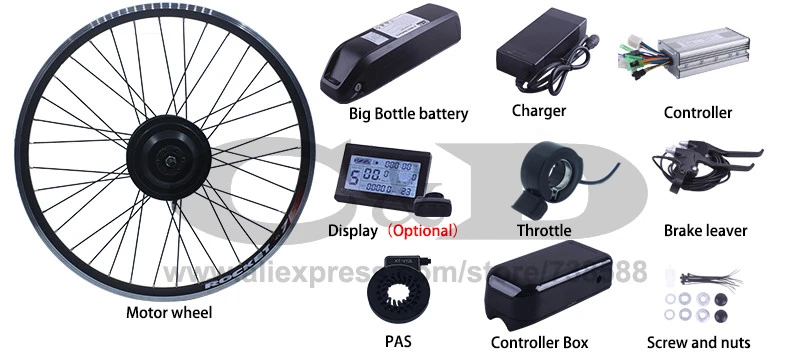

Here's the packing list:
1 1x 350W / 500W Motorized wheel
2 1xController
3 1xThumb Throttle
4 2xPower cut-off Brake lever
5 1xPAS
6 1x Big Bottle Battery
7 1xCharger
8 1xController Box
9 1x Screw and nuts
(Optional)10 1x Display
Kindly leave us order message in this format after you place an order:
1. Front motor/Rear motor
2. Rim size: 12″,16″,18″,20″,22″,24″,26″,27.5″, 700C
3. Other remarks that you want to specify
Thank you for cooperation!
PS: If you are a reseller or you want to be our agent, please let us know!




If you need to upgrade 4A charger, please place an order but do not pay and contact us. We will add the price difference and notify you to pay.

4A Charger

Display

There are 3 options

Controller

Rated voltage 36V 48V
Rated current 10A 11A
Low voltage protection DC29±0.5V DC39±0.5V
Maximum current 20±1A 22±1A
Speed set 1-4.2V 1-4.2V
Brake input Low-level Low-level

PAS

There are 4 options

1.KT BZ-4(8)

2.KT V12L(default)

3.KT D12L

4.BZ-10C

BZ-4(8)

KT-V12L

KT-D12L

BZ-10C

There are 2 options

1. Thumb throttle(default)

2. Half twist throttle

There are 2 options

1. Power cut-off brake leaver(default)

2. Power cut-off brake sensor

Brand Name

MXUS

Voltage

36V 48V

Power Supply

Lithium Battery

Foldable

No

Wattage

351 – 500w

Range per Power

10 – 30 km

Rated Passenger Capacity

One Seat

Wheel Size

12",16",18",20",22",24",26",27.5", 700C

Max Speed

36V 30km/h 48V 40km/h

Motor

Brushless

Certification

ce

Frame Material

Aluminum Alloy

Style

Multifunctional Type
