Here is a diagram about how this smart light control set works, now everything can be done just with your Xiaomi Smart Home APP! xiaomi выключатель
aqara switch xiaomi aqara wall switch

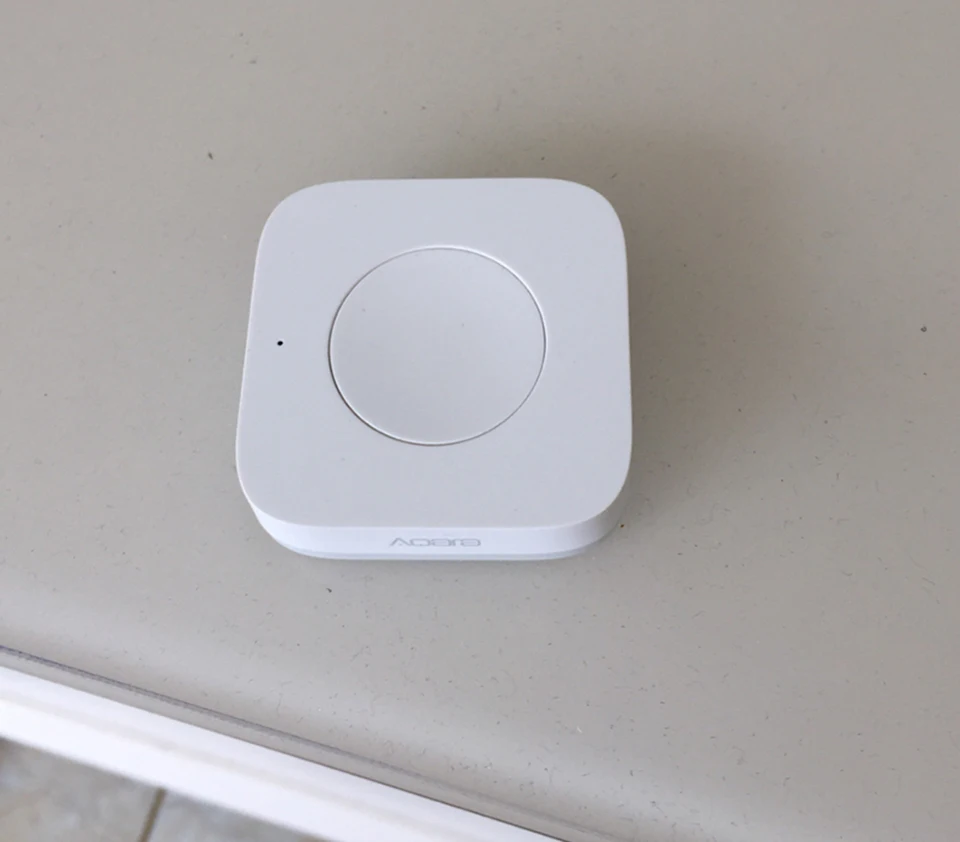

Features :
aqara switch xiaomi aqara wall switch
* Cannot be wired, only can control Xiaomi smart bulb or light through ZigBee
* Portable, realize controlling everywhere
* Can be used as a key doorbell
* SOS emergency call
* Defending and withdrawing function
* Wireless frequency: 2.4GHz ( 2400 – 2483.5MHz )
* Wireless connection: ZiGBee
* Built-in CR2032 battery
* Please download the ''Mi Home'' APP in Google Play or APP Store
Note:This switch has to work with Xiaomi Gateway 2 or Aqara gateway to achieve smart remote control function
The Real Pictures:Aqara switch xiaomi aqara wall switch
Wall switch: aqara wall switch aqara switch xiaomi aqara wall switch xiaomi wall switch
Main Features:
Zero Line and Fire Wire Double Key Version

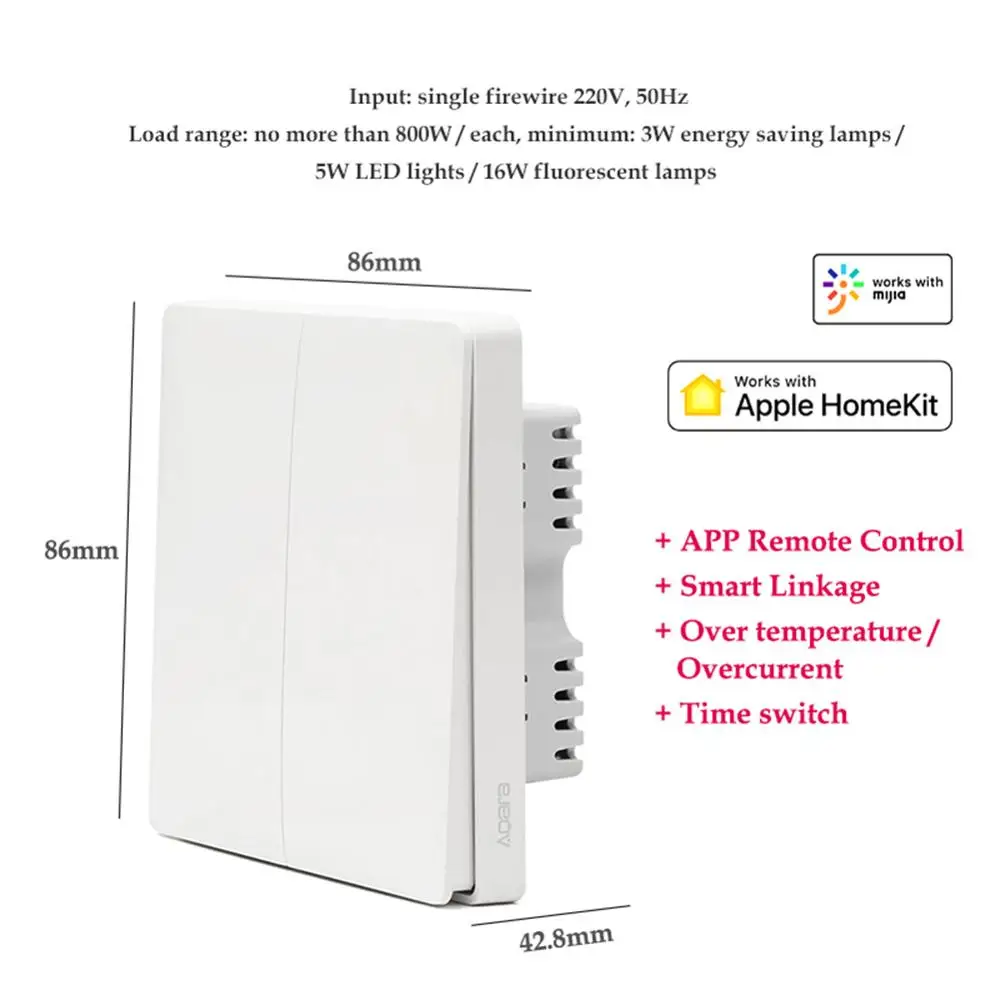

Without Neutral Wall Switch:
Single Fire wire version ( Neutral wire is not required)
Features :
* Xiaomi Aqara wall switch ZiGBee version
* Single key and Double key control
* Wireless connection: ZigBee
* Can connect to Aqara smart device or other Zigbee device
* Input: single firewire 220V, 50Hz
* Load range: no more than 800W / each, minimum: 3W energy saving lamps / 5W LED lights / 16W fluorescent lamps
* Working humidity: 5 – 95pct
* Please download the “Mi Home” APP in Google Play or Apple Store

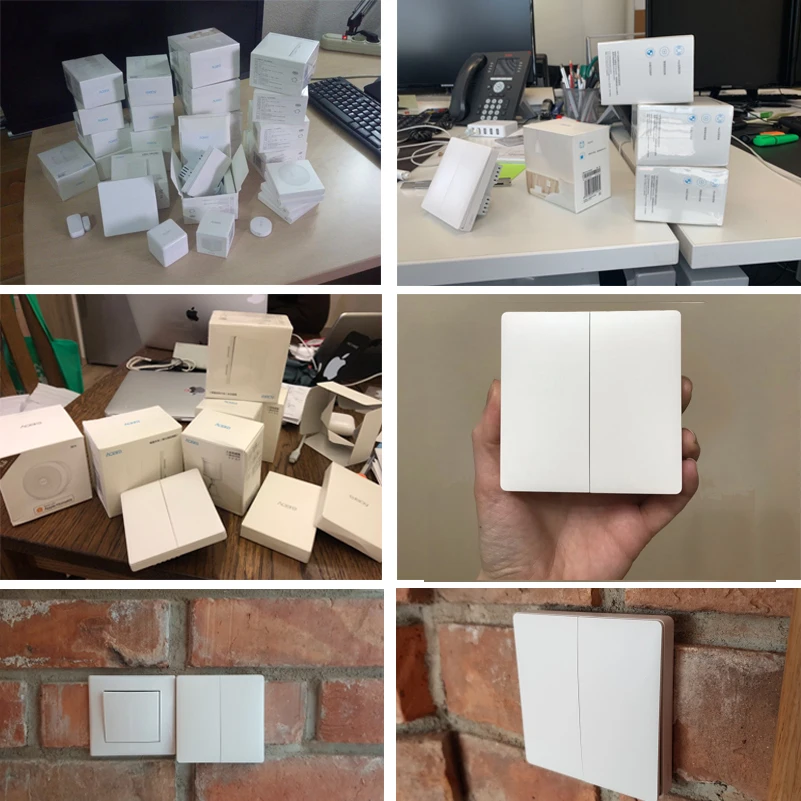

The Real Pictures:
Aqara no neutral Wall Switch
With neutral wall switch:
The with neutral switch, which can only be used with zero line.
Multiple application : can connect to Aqara smart devices or other ZigBee devices
Use conditions : has to work with zero line
Wireless connection: ZigBee
Wireless frequency: 2.4GHz ( 2400 – 2483.5MHz )
Power input: 10A max. 250V AC
Load output: 2500W max. total loading
Working temperature: 0 – 40 Deg.C
Working humidity: 5 – 95pct RH
Please download the “Mi Home” APP in Google Play or Apple Store

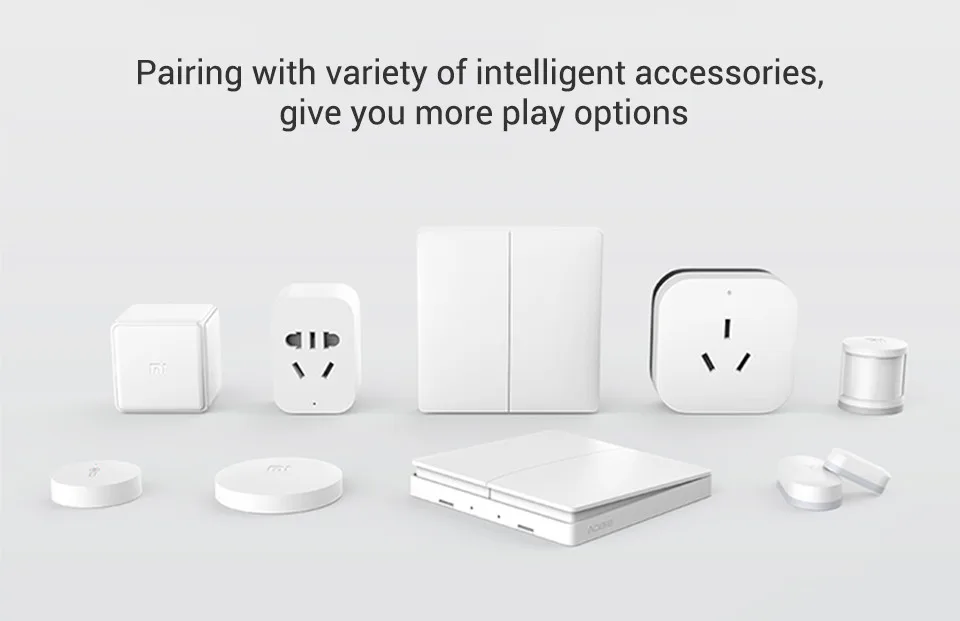

Pairing with wariety of intelligent accessories,give you more play options
Common Question&Answer:

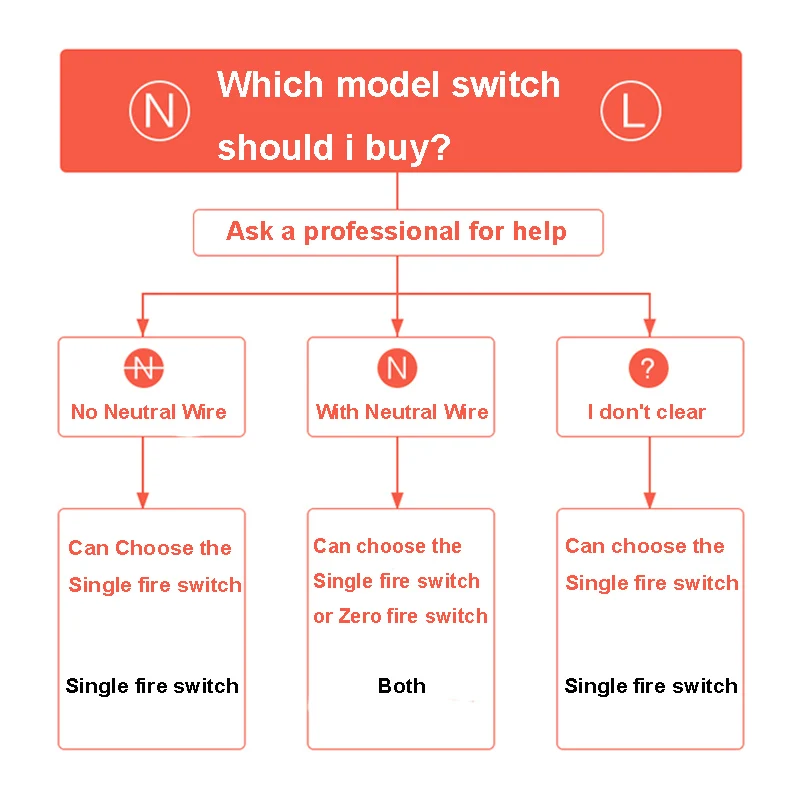

1. What is the difference between a “With Neutral Wire Wall Switch” and a “No Neutral Wire Wall Switch”?
A: Both are smart wall switches with the same main functions. With Neutral Wire Wall Switch needs to reserve the Neutral Wire at the switch when it is renovated. If you need to replace the original traditional switch in your home, we recommend to buy a “No Neutral Wire Wall Switch”.
2. What kind of power lamps do the wall switches need to work properly?
A: The single-fire version of the wall switch can support 3W energy-saving lamps or 5W LED lamps or 16W fluorescent lamps. The maximum power is less than 800W.
There is no minimum power requirement for the zero-fire wall switch. The total power of all loads of the entire switch cannot exceed 2500W.
3. What is the size of the wall switch into the wall?
A: L58*W58*H29mm aqara wall switch, xiaomi light switch

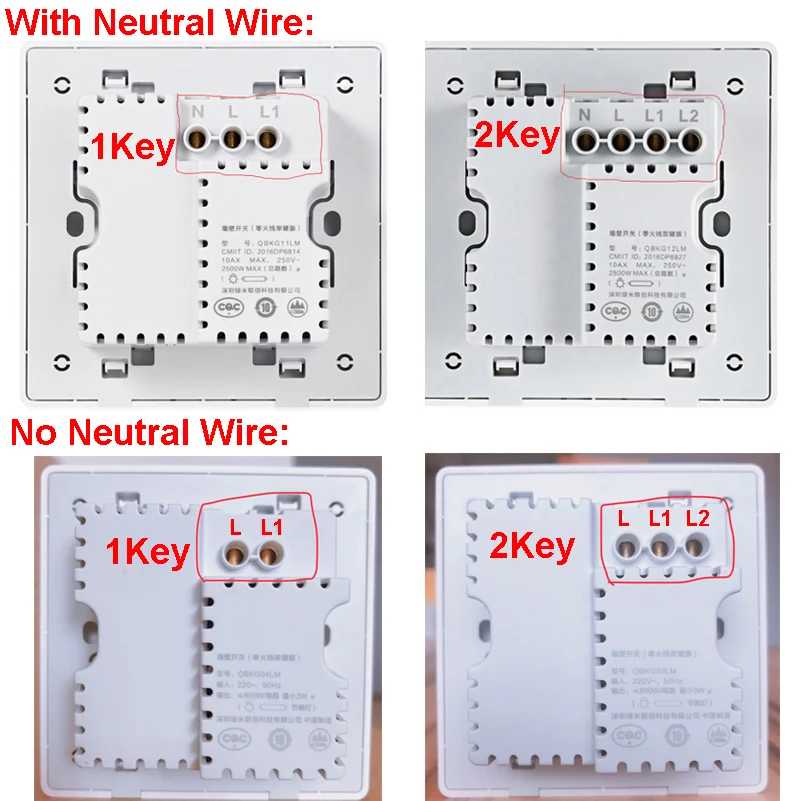

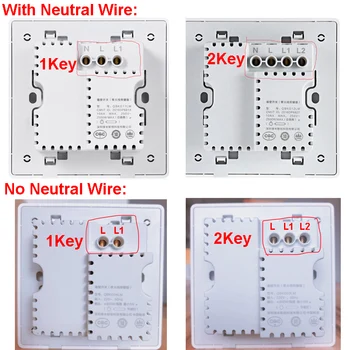

4.What's the color name mean?
-
With Neutral means “This switch need to connect with the neutral wire“
-
No Neutral means ” The switch do not need to connect the neutral wire, it can work no matter if there have neutral wire in your home.
-
1key means ” The switch can only control 1 light”
-
2key means ” The switch can control 2 lights
xiaomi wall switch
Can get more discount in the phone APP
wall light switch xaomi выключатель smart light switches zigbee switch xiaomi smart wall switch xiaomi switch
xiaomi wall switch xiaomi aqara wall switch aqara switch aqara wall switch xiaomi aqara wall switch aqara switch xiaomi aqara wall switch aqara switch
aqara switch xiaomi aqara wall switch aqara switch xiaomi aqara wall switchaqara switch xiaomi aqara wall switch aqara switch xiaomi aqara wall switch xiaomi smart switch Aqara wall switch
xiaomi smart switch, xiaomi light switch
