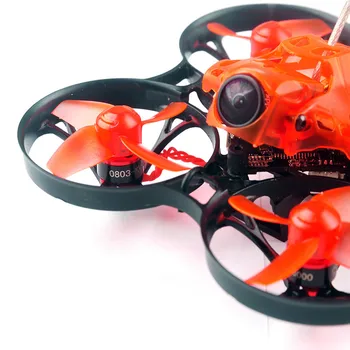

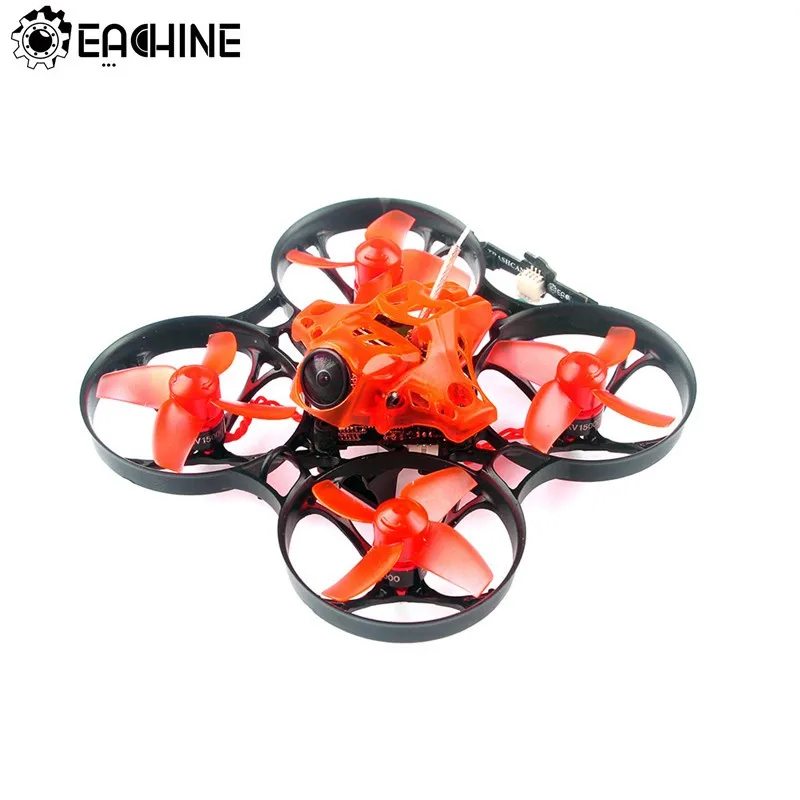

Eachine TRASHCAN TC75 75mm Crazybee F4 PRO OSD 2S Whoop FPV Racing Drone Caddx Eos2 Camera 25/200mW VTX

Specifications:
Brand Name: Eachine
Model Name: TRASHCAN
Item Name: 2S 75mm Brushless Whoop racer drone BNF/PNP
Wheelbase: 75mm
Size: 98mm*98mm*36mm
Weight: 33g(without battery)
Weight:48g(with Original 1s 300mah lipo battery x2)

Spare parts specifications:

Motor Mode: TC0803 15000KV
Configu-ration: 9N12P
Stator Diamter: 8mm
Stator Length: 3mm
Shaft Diameter: Φ1mm
Motor Dimension(Dia.*Len): Φ10.5mm*14.5mm
Weight(g): 2.2g
No.of Cells(Lipo): 1S-2S
Flight controller (Frsky version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEEF4 PRO FS Firmware target: CrazybeeF4FS
(DSM2/DSMX version) CRAZYBEEF4 PRO Firmware target: CrazybeeF4DX
(No RX version) CRAZYBEEF4 PRO FR Firmware target: CrazybeeF4DX
MCU: STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Board size: 28.5 * 28.5MM
Power supply: 1-2S battery input (DC 3.5-8.7V)
Built-in 6A(each) Blheli_S 4in1 ESC Dshot600 ready
Frsky version Built-in SPI Frsky receiver with telemetry(D8/D16 switchable)
Flysky version Built-in SPI Flysky receiver with telemetry(AFHDS/AFHDS2A switchable)
DSM2/X Version built-in Serial-based DSM2/DSMX compatible satellite receiver
No RX version need to add external Receiver
Built-in Betaflight OSD(SPI Control)
Built-in Current meter Max 28A
Current meter scale set to 1175
Built-in 5V 1A Buck / Boost with LC filter
Built-in voltage detection
BLHELI_S pass-through Ready
Taillight LED Ready
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v)
Current: 6A continuous peak 7A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: S_H_50_REV16_7.Hex
Default protocol: DSHOT600
Frsky NON-EU receiver Version SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Flysky receiver Version SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
DSM2/DSMX receiver version Serial bus receiver
Protocol: DSM2/DSMX compatible
Channels:6-9 (Depend on your radio)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
PNP No RX version No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc.
VTX Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Smart Audio ready
Weight: 3g
CADDX EOS2 camera 1/3″ CMOS Sensor
1200 TVL
2.1mm lens
16:9 Image size
NTSC
Global WDR
Internal Synchronization
Lipo Battery Capacity: 300mAh
Voltage: 3.8v
Continuous Discharge Rate: 40C
Instantaneous discharge rate: 80C
Size: 55mmx11.5mmx6.5mm
Weight: 7.8g
Connector: PH2.0
*Notes: Need 2pcs batteries for Series circuit


Features:
PNP version support TBS receiver
New Crazybee F4 PRO Flight controller 1-2s Lipo Compatible
2S whoop more powerful and more flight time
Betaflight support , multi flight mode: ACRO/AIR/ANGLE
New 0803 Powerful and High efficiency Brushless motor and Smooth ESC. The motor power with 7V and 40mm propeller can get 55g pull. It is more powerful pull than 0802 49g.
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)
Caddx EOS2 camera ready , More comfortable FPV experience
Camera Angle adjustable (0-35°)
VTX power switchable 25mw~200mw

Smart Audio ready , change VTX bands, powers, channels via OSD
Adjust the settings and the PID of the flight controller via OSD
Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
Flysky version support both AFHDS and AFHDS-2A protocol transmitter
DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
No RX version support external serial-bus receiver like xm+, crossfire, S-FHSS etc..
Full telemetry function ready (Frsky Non-EU and Flysky version support)
Support buzzer
LED_Strip Ready
Real Bind and Fly version
Compatible both for 1s-2s

User Manual
Crazy PNP Manual, Download
DSM2 DSMX version Manual, Download
Flysky version Manual, Download
Frsky version Manual, Download

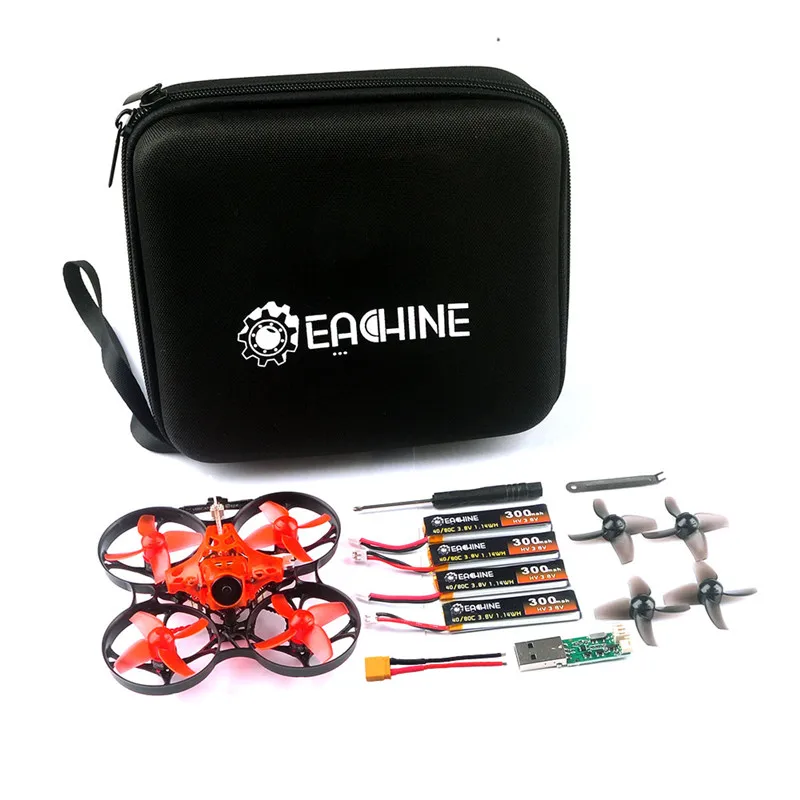

Package Included:

PNP/ NO Receiver Version
1 x 75mm Brushless whoop Frame
1 x Crazybee F4 PRO FC no RX verion
4 x TC0803 KV15000 Motor
1 x 40mm propeller(4cw+4ccw)
1 x Caddx EOS2 camera
1 x 5.8G 40ch 25mw~200mw VTX
4 x 3.8v 300mah 40C/80C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x LED board
1 x Screwdriver
1 x XT30 wire
1 x Bag

BNF Version
1 x 75mm Brushless whoop Frame
1 x Option1: Crazybee F4 PRO FC built-in Frsky NON-EU receiver
Option2: Crazybee F4 PRO FC built-in Flysky AFHDS and AFHDS-2A Switchable receiver
Option3: Crazybee F4 PRO FC built-in DSM2/DSMX receiver
4 x TC0803 KV15000 Motor
1 x 40mm propeller(4cw+4ccw)
1 x Caddx EOS2 camera
1 x 5.8G 40ch 25mw~200mw VTX
4 x 3.8v 300mah 40C/80C battery
1 x USB Lipo/LIHV Charger
1 x Propeller disassemble tool
1 x LED board
1 x Screwdriver
1 x XT30 wire
1 x Bag

Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back

Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.

Brand Name

Eachine

Material

Plastic

Aerial Photography

Yes

Warranty

no

Motor

Brush Motor

Charging Voltage

as show

Model Number

Eachine TRASHCAN TC75

Flight Time

as show

Type

Helicopter

Plugs Type

as show

Remote Distance

as show

Control Channels

12 Channels & Up

Controller Battery

as show

Dimensions

as show

Remote Control

Yes

Package Includes

Original Box

Charging Time

as show

Power Source

Electric

Warning

no

Age Range

Grownups

State of Assembly

Almost Ready

Features

Remote Control

Controller Mode

MODE2

Shipping and delivery

We are proud to offer international shipping services that currently operate in over 200 countries and islands worldwide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some locations we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

How long does shipping take?

Shipping time varies by location. These are our estimates:

Location *Estimated Shipping Time
United States 10-30 Business days
Canada, Europe 10-30 Business days
Australia, New Zealand 10-30 Business days
Central & South America 15-30 Business days
Asia 10-20 Business days
Africa 15-45 Business days
*This doesn’t include our 2-5 day processing time.

Do you provide tracking information?

Yes, you will receive an email once your order ships that contains your tracking information. If you haven’t received tracking info within 5 days, please contact us.

My tracking says "no information available at the moment".

For some shipping companies, it takes 2-5 business days for the tracking information to update on the system. If your order was placed more than 5 business days ago and there is still no information on your tracking number, please contact us.

Will my items be sent in one package?

For logistical reasons, items in the same purchase will sometimes be sent in separate packages, even if you have specified combined shipping.

If you have any other questions, please contact us and we will do our best to help you out.

Refunds & returns policy

Order cancellation

All orders can be cancelled until they are shipped. If your order has been paid and you need to make a change or cancel an order, you must contact us within 12 hours. Once the packaging and shipping process has started, it can no longer be cancelled.

Refunds

Your satisfaction is our #1 priority. Therefore, you can request a refund or reshipment for ordered products if:

  • You do not receive them within the guaranteed time (45 days not including 2-5 day processing)
  • You receive the wrong item
  • You do not want the product you have received (but you must return the item at your expense and the item must be unused)

We do not issue the refund if:

  • Your order does not arrive due to factors within your control (e.g. providing the wrong shipping address)
  • Your order does not arrive due to exceptional circumstances outside our control (e.g. not cleared by customs, delayed by a natural disaster)
  • Other exceptional circumstances outside the control of shop.gearscoot.com

*You can submit refund requests within 15 days after the guaranteed period for delivery (45 days) has expired. You can do it by sending a message on page.

If you are approved for a refund, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within 14 days.

Exchanges

If for any reason you would like to exchange your product, perhaps for a different size in clothing. You must contact us first and we will guide you through the steps.

Please do not send your purchase back to us unless we authorise you to do so.

Real customer reviews

14 reviews
92.9% of buyers enjoyed this product!
5 stars
( 11 )
4 stars
( 2 )
3 stars
( 0 )
2 stars
( 1 )
1 star
( 0 )
  1. M***a

    I ordered this item in the beginning of December. The store gave me the wrong tracking number and never sent me this item. Never buying from them again

  2. A***l

    Everything was fine, very satisfied!

  3. P***t

    Excellent store fast shipment

  4. M***t

    alles super.

  5. Customer

    This quadcopter is amazing, good job eachine. Keep the good quadcopters coming and we will keep buying them.

  6. Customer

    Super fast, everything is fine!

  7. P***r

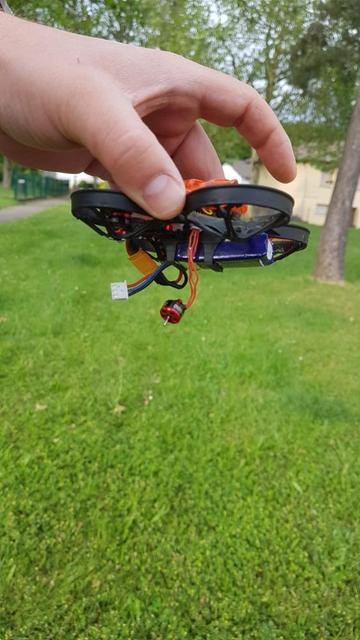

    the crazybee f4 had an issue with the 5v regulator. this is a common problem and can be fixed
